Pro Audio > HK LINEAR-5-MK2-118-SUB-A 2000 Watt 18" Active Subwoofer

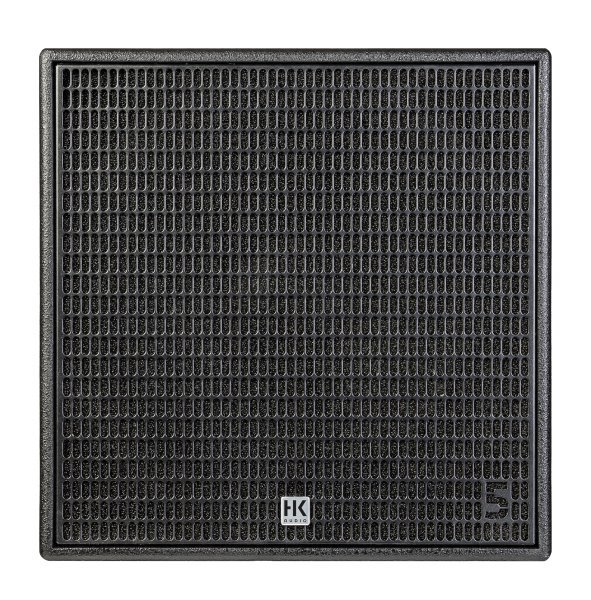

HK LINEAR-5-MK2-118-SUB-A 2000 Watt 18" Active Subwoofer

Birch multiplex bass reflex subwoofer with more sound pressure

Compact, easy-to-transport bass reflex subwoofer with punchy sound.

The standard bass-reflex subwoofers form the solid foundation of the new LINEAR 5 MK2 systems with their uncompromising performance and dry, defined bass down to the lowest of the lows. Cardioid settings that can be simply selected via a preset give the user an enormously expanded range of options for system configuration and access to the professional class. 2.1 setups are simplified thanks to the stereo preamplifiers.

Specifications

ConceptActive subwoofer

Cabinet principleBass reflex

Max. SPL average²127 dB

Max. SPL peak³130 dB

Frequency range -6 dB44 Hz- X-over

Frequency range -10 dB40 Hz - X-Over

Index

Index 2)1 x Subwoofer @ 1 m, 10 % THD, 42 Hz - 100 Hz, (EN 60268-21), half space

Index 3)1 x Subwoofer @ 1 m, 10 % THD, half space

Components

Low frequency1 x 15" cone speaker, 3" voice coil

Connections

Power supply1 x IEC connector with V-lock safety system, 100-240 V

Analog input2 x XLR/jack combo symm.

Analog output2 x XLR symm.

DSP output1 x XLR symm.

Network input1 x Ethercon RJ45

Network output1 x Ethercon RJ45

Electronic data

PreamplifierDSP preamplifier

Power amplifierClass D

Power amplifier output RMS600 W

Power amplifier output peak1200 W

Power consumption1 A / 100-240 V nominal according to EN 62368-1

Maximum input level+20 dBu

Speaker protectionRMS-/Peak-Limiter

Sample rate48 kHz

Latencyunder 2 ms

DSP functionsparametric 10-band EQ with variable filter characteristics, low-pass filter, polarity, level, delay, limiter, mute

Remote softwareHK Audio DSP CONTROL (Windows, Mac OS)

Filter presetsFront, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote

Digital audio transmissionMILAN

| | | | | | | | |
