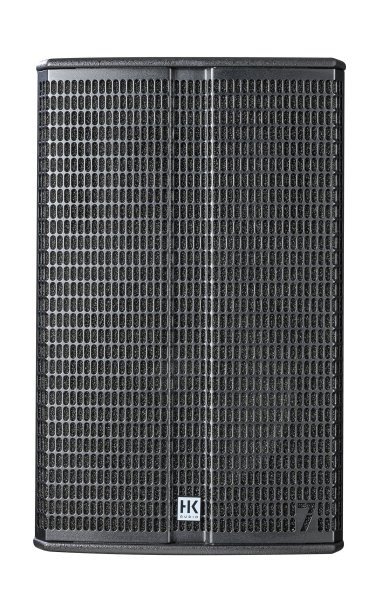

HK LINEAR-7-115-FA 200 Watt 15" Active Speaker
The LINEAR 7 115 FA active and network-compatible full-range speaker delivers more sound pressure in the low-frequency range thanks to its larger cabinet volume. With the Bass Boost preset optimised for each speaker, the low-frequency range can be boosted as required.
Specifications
ConceptActive 2-way loudspeaker
Cabinet principleBass reflex
Max. SPL average2129 dB
Max. SPL peak3134 dB
Crossover frequency1.5 kHz
Frequency range -6 dB57 Hz - 19 kHz
Frequency range -10 dB54 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical)60° x 40°, rotatable
Index
Index 2)1 x unit @ 1 m, 10 % THD, 70 Hz - 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD, half space
Components
Mid/high frequency1 x 15" cone speaker, 3" voice coil
High frequency1 x 1" compression driver, 1.7" voice coil
HornConstant directivity horn, rotatable
Connections
Power supply1 x Powercon NAC3 In, 100-240 V
Analog input1 x XLR/jack combo symm.
Analog output1 x XLR symm.
DSP output1 x XLR symm.
Network input1 x Ethercon RJ45
Network output1 x Ethercon RJ45
Electronic data
PreamplifierDSP preamplifier
Power amplifierClass D - Biamped
Power amplifier output peak2000 W
Power consumption1 A / 100-240 V nominal according to EN 62368-1
Maximum input level+20 dBu
Speaker protectionRMS-/Peak-Limiter
Sample rate96 kHz
Latencyunder 2.6 ms
DSP functionsparametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
Remote softwareHK Audio DSP CONTROL (Windows, Mac OS)
Filter presetsFlat, Boost, Low Cut, Remote
Digital audio transmissionMILAN
